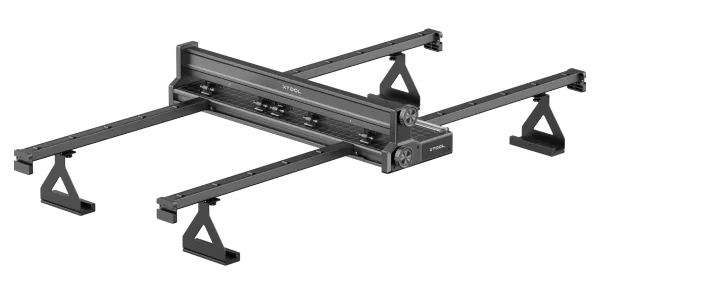

xTool Intelligent Conveyor Feeder for P3

xTool Intelligent Conveyor Feeder for P3

The First Full-Size Conveyor Preview: Offers a complete "AI Seamless Tiling Preview," eliminating the blind spots of a partial preview.
Easy Setup with Integrated Design: A one-time installation base and detachable suspended rails, requiring no support tables for standard rails.
Time-Saving Automated Setup: Features automatic material clamping, automatic homing, and an automatic preview.
Almost 2x Larger Work Area & Thicker Materials: Supports a 24.01" x 51.18" work area with 3-axis (X+Y+U) motion control, a max 26mm material thickness, and 200mm/s speed.

RM 2,699.00

xTool Intelligent Conveyor Feeder for P3

for xTool P3

NOW

MSRP

NOW

xTool Intelligent Conveyor Feeder for P3for xTool P3

NOW

MSRP

NOW

Works with

xTool P3 Laser Cutter 5W IR Laser Module RA3 Rotary Mobile Work Stand

3CM Product Demo

Visit the 3CM showroom to explore features, ask questions, and try before you buy.

Book via WhatsApp

xTool Intelligent Conveyor Feeder for P3

Intelligent Conveyor Feeder
for xTool P3

The Only Intelligent Conveyor You'll Actually Use

Handle Giant Creation or Countless Batch Items

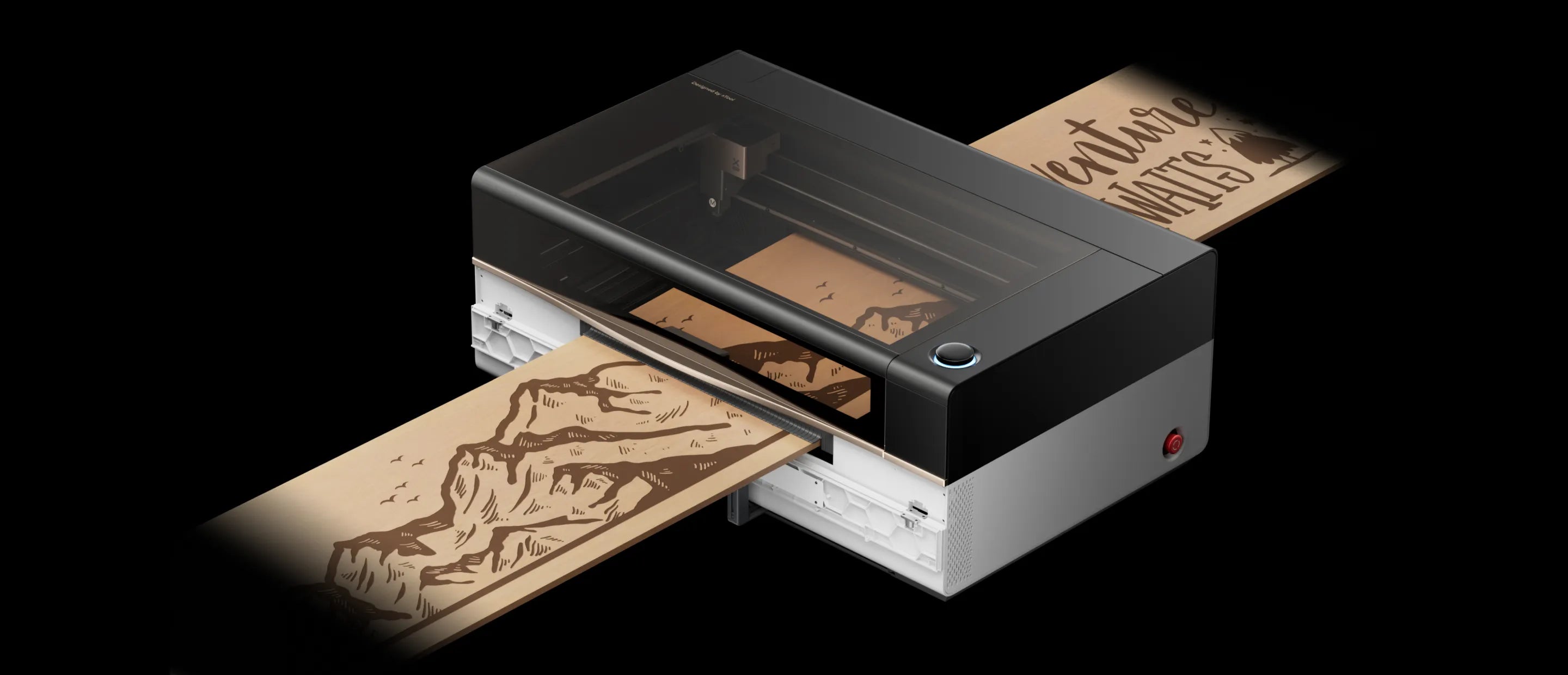

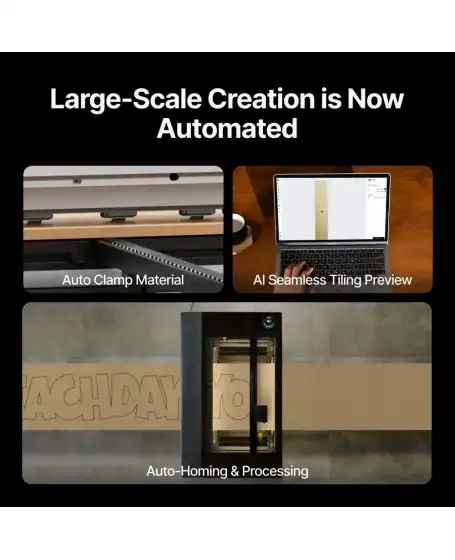

Large-Scale Creation is Now Automated

Creating large-scale signage and furniture is now incredibly efficient. The intelligent feeder eliminates tedious manual setup and guesswork. It provides a seamless preview for accurate alignment and features auto-clamping, auto-homing and auto-processing.

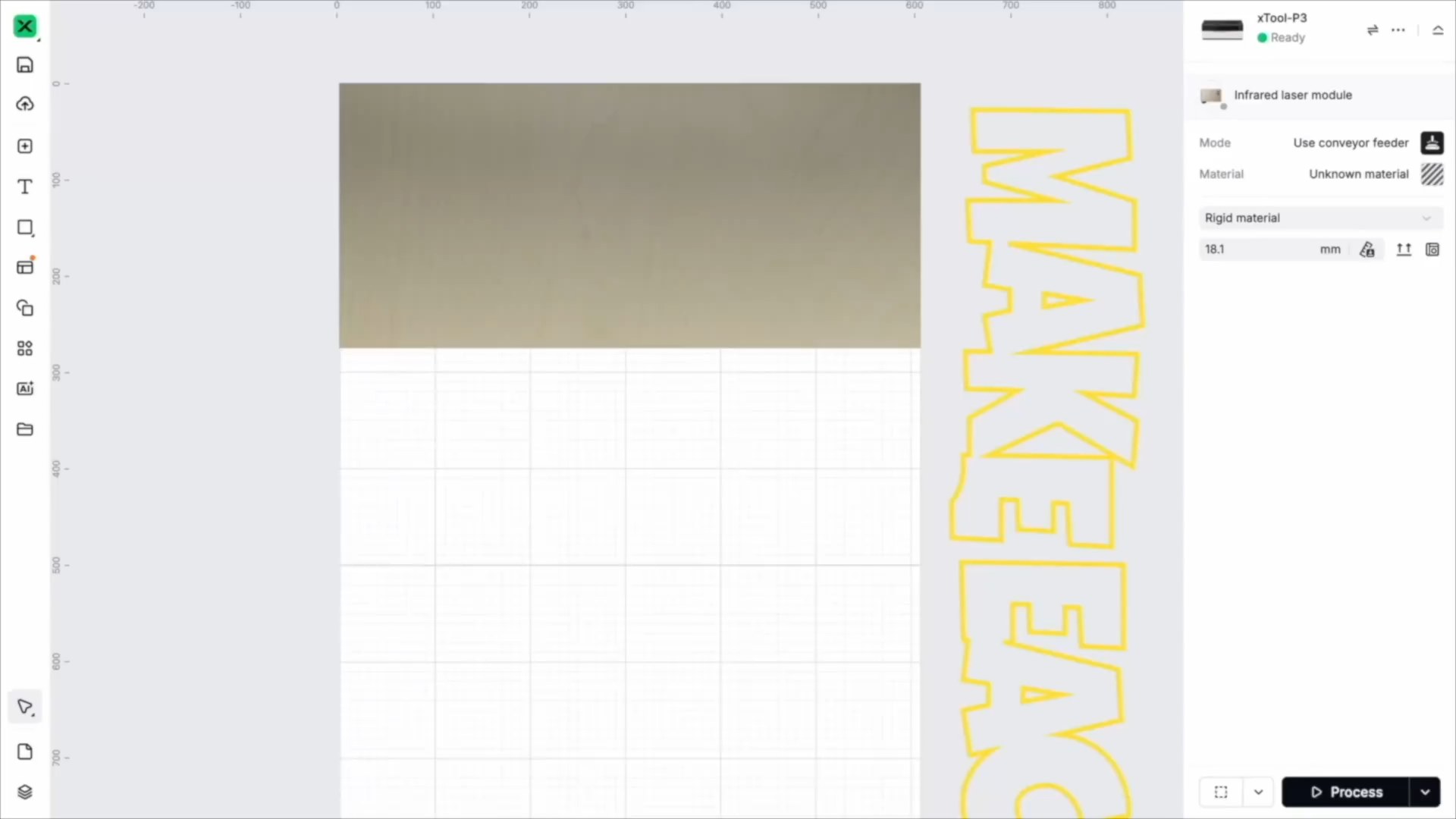

AI Seamless Tiling Preview

Auto Clamp Material

Auto Homing & Processing

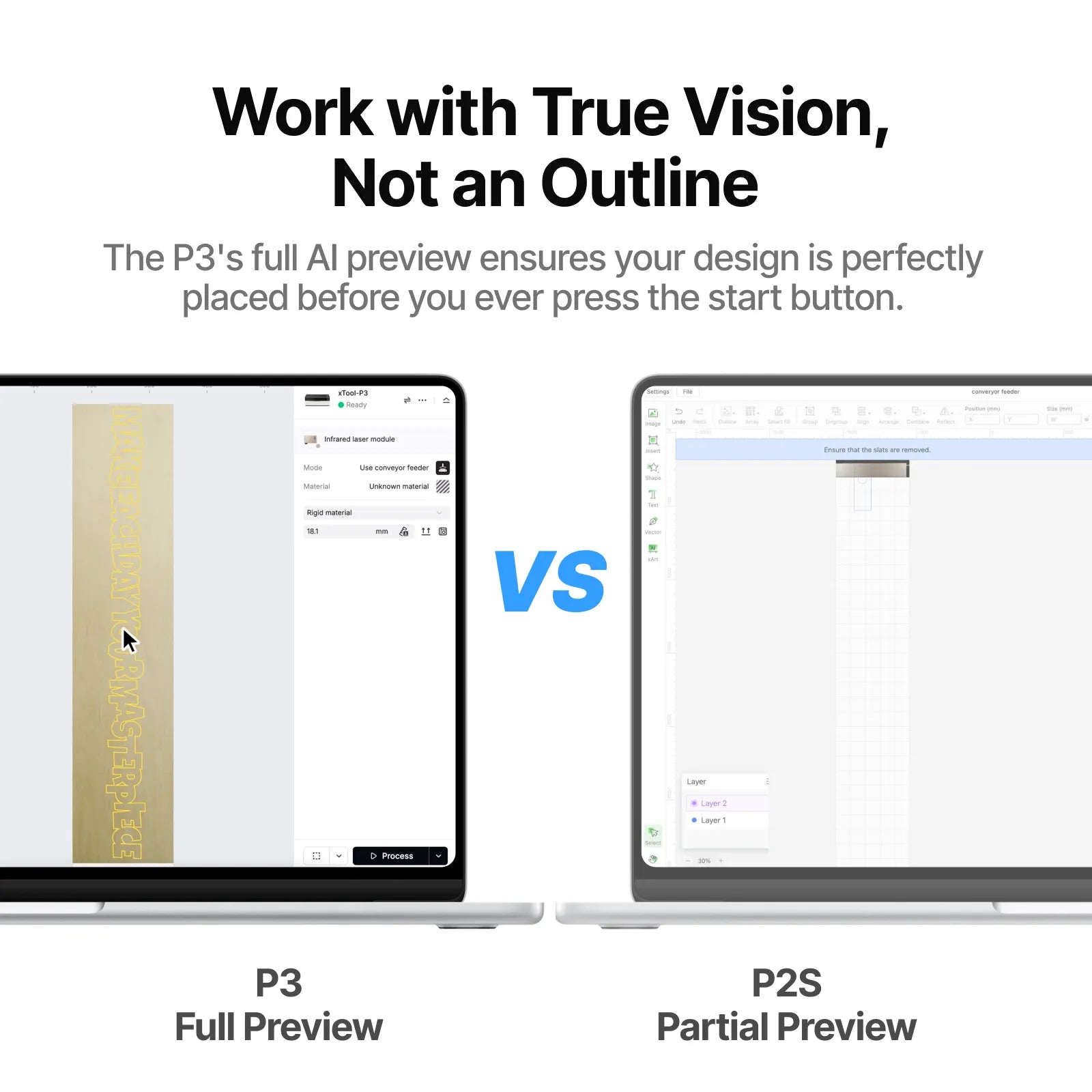

Using high-resolution images captured by the P3's camera, our AI algorithm seamlessly stitches a complete preview of your entire material, eliminating all guesswork for accurate, effortless alignment.

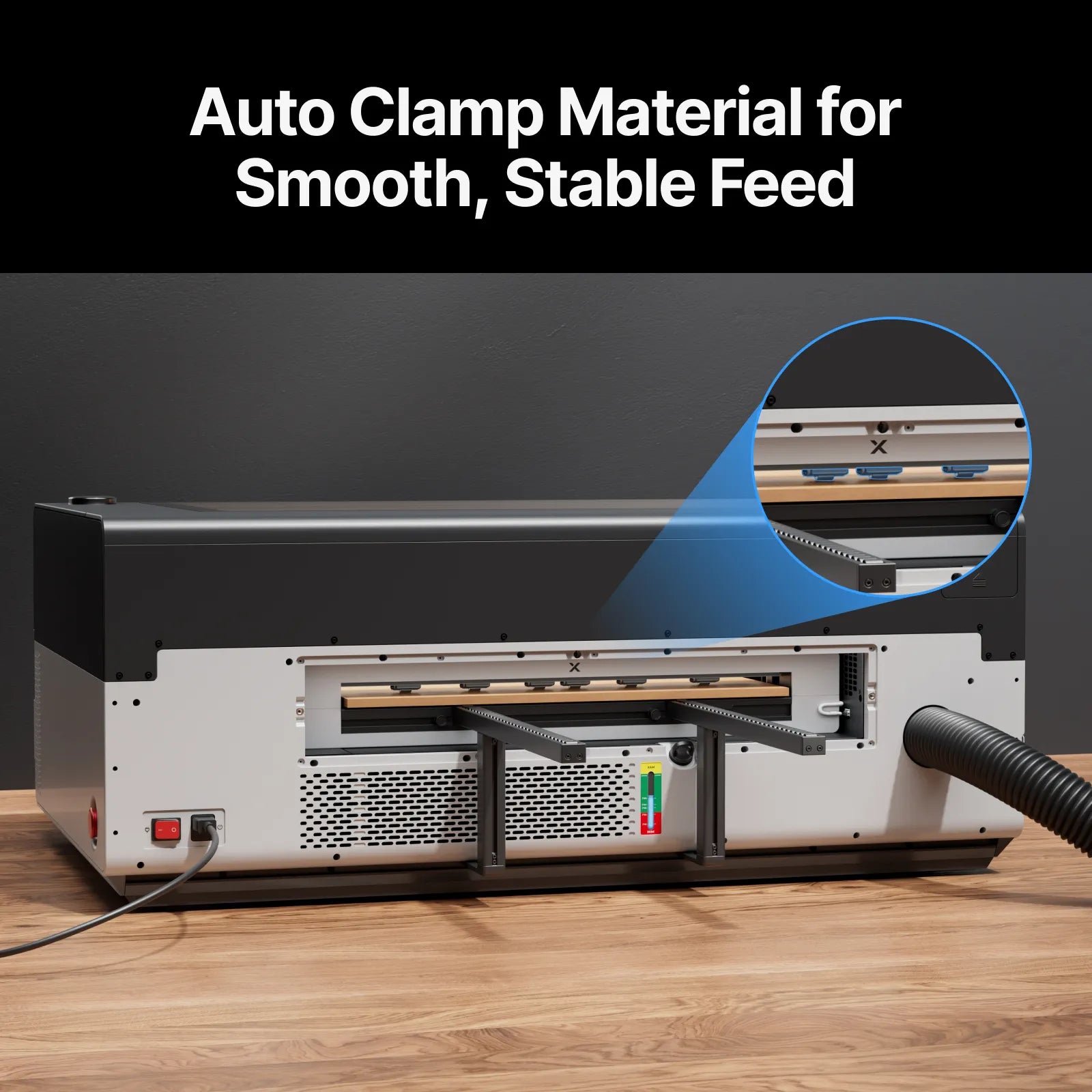

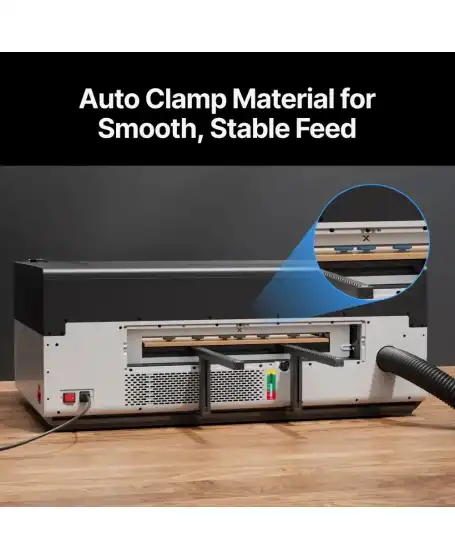

The system intelligently applies the pressure of the rollers to clamp the material based on its thickness, and with a full roller design on the conveyor rail, these ensure a smooth, stable, non-slip feed.

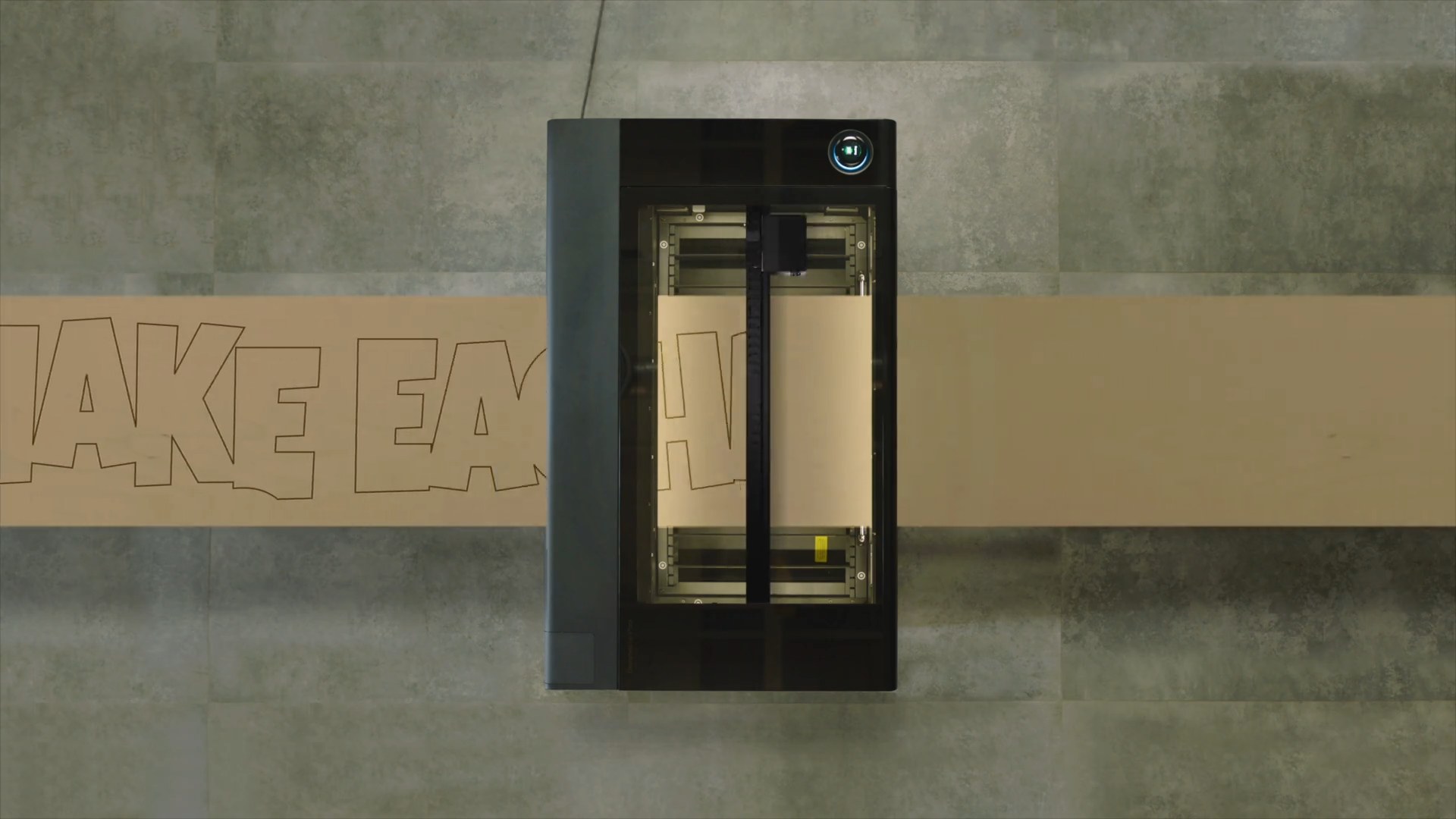

The feeder automatically moves your material to the precise starting position; simply press start to initiate the automated processing.

Effortless Production in 4 Simple Steps

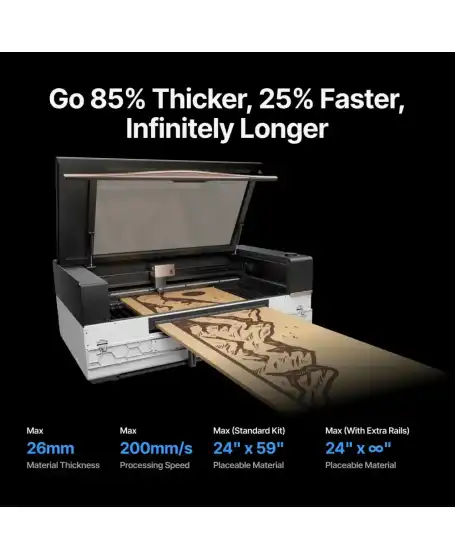

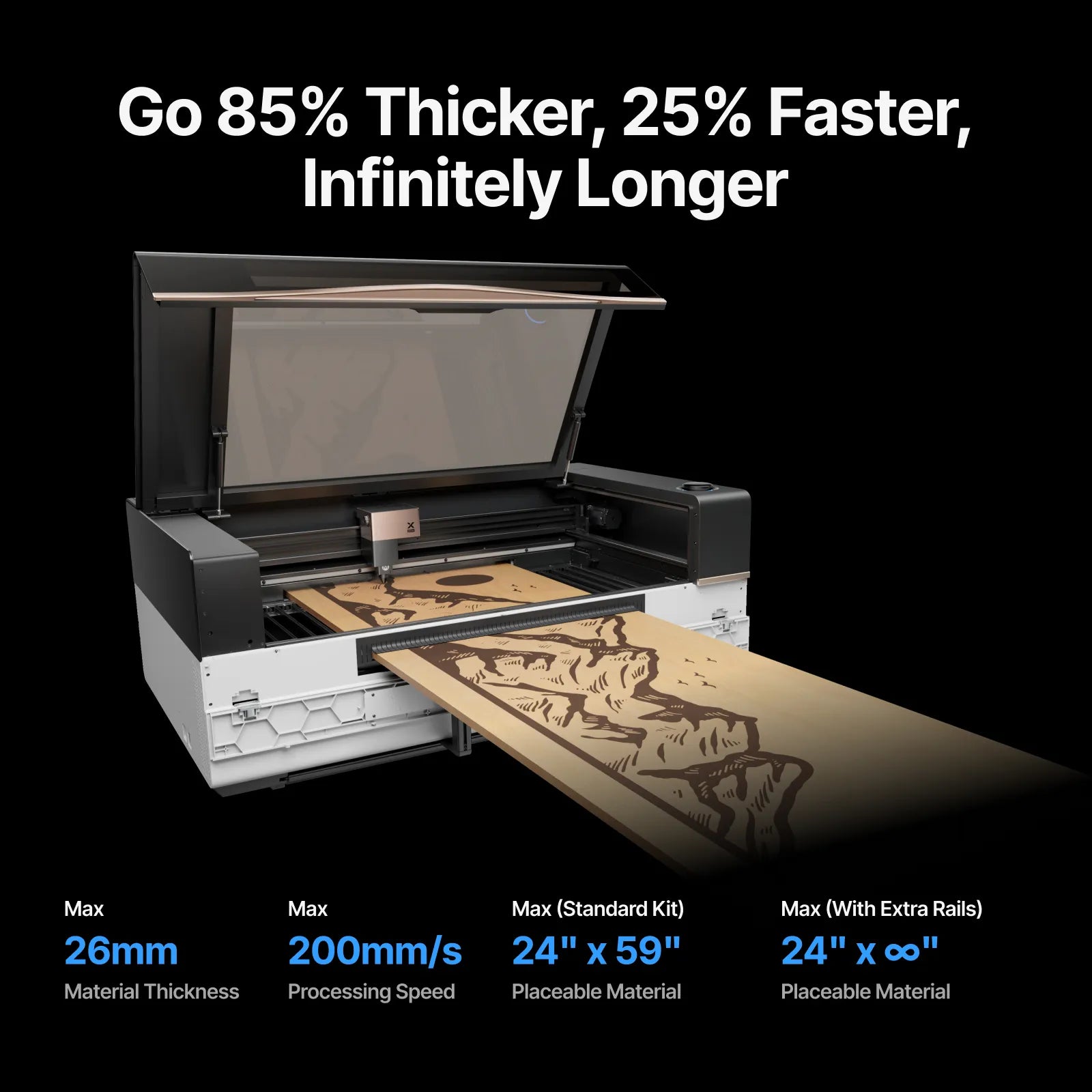

Go 85% Thicker, 25% Faster,

Infinitely Longer

Unmatched Feeding Performance

Max

26mm

Material Thickness

Max

200mm/s

Processing Speed

Max (Standard Kit)

24'' x 59''

Placeable Material

Max (All in One Kit)

24'' x ∞''

Placeable Material

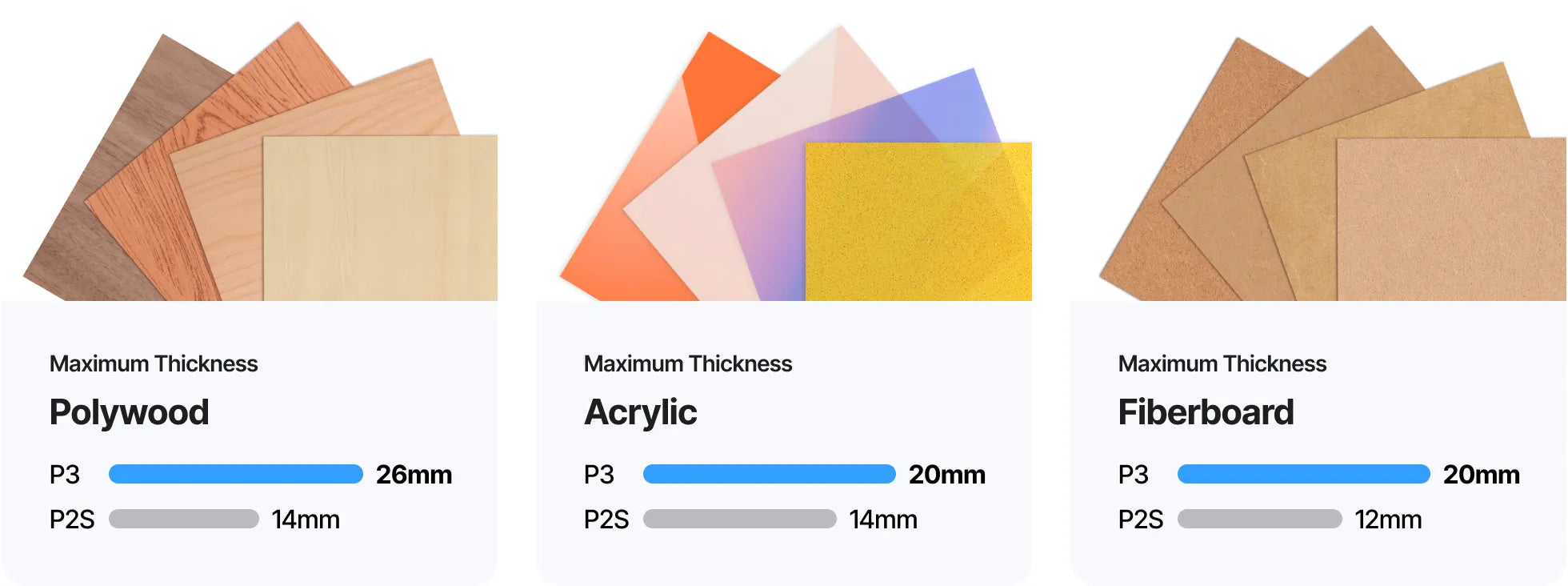

Process Thicker, Create Stronger

The P3 feeder dramatically increases supported material thickness for both hard and soft boards, perfect for creating more substantial and durable projects.

Hard Materials

Soft Materials

Standard Kit

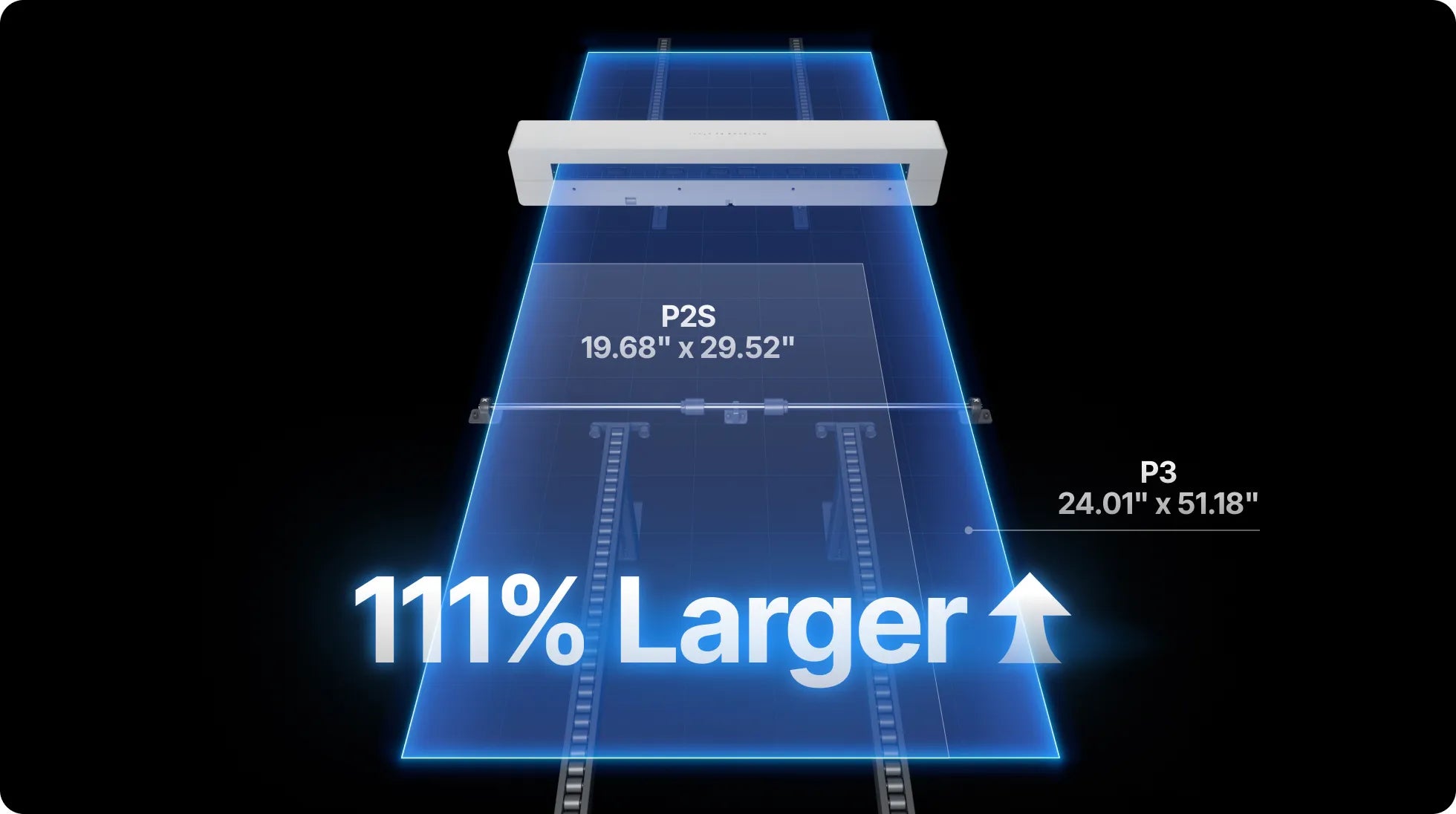

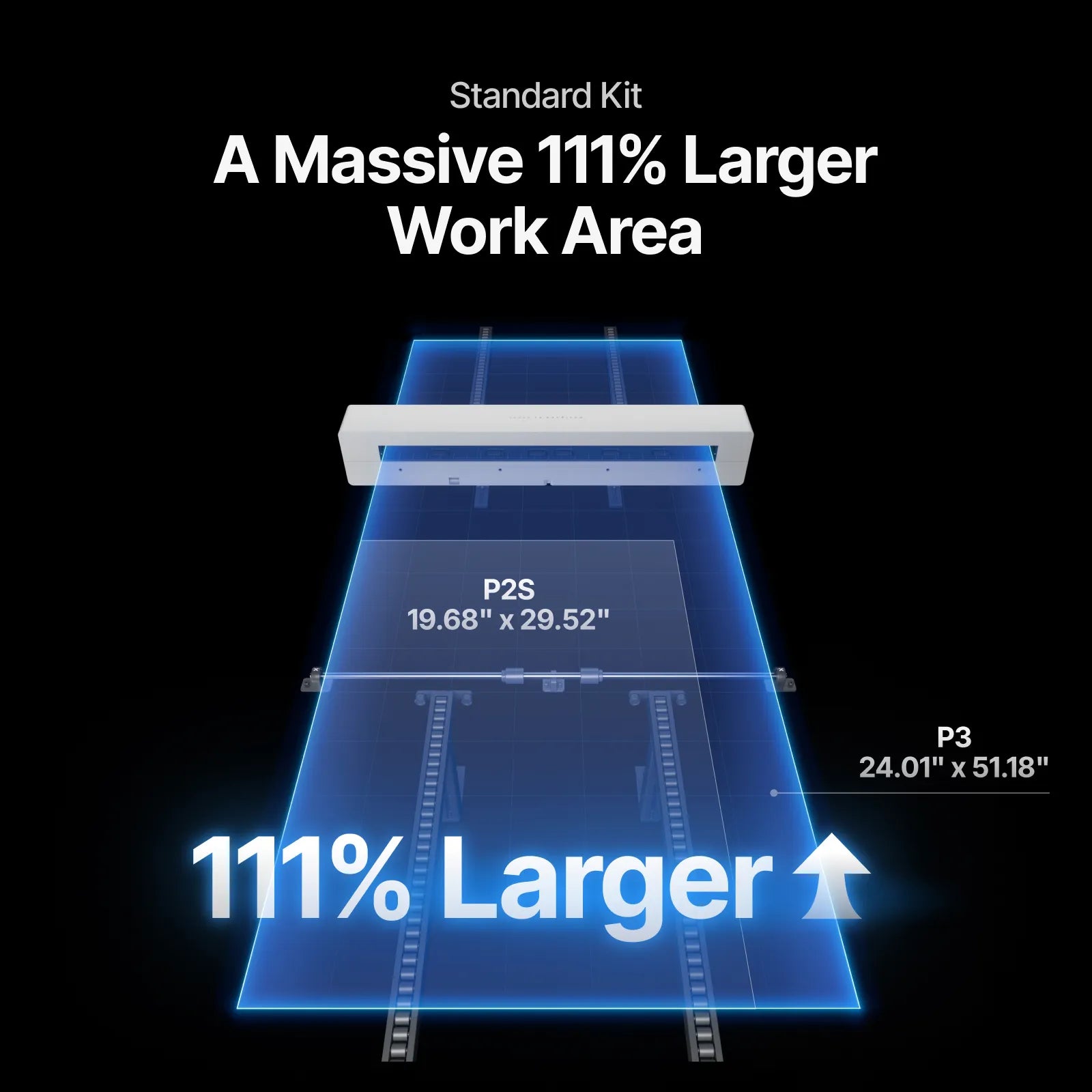

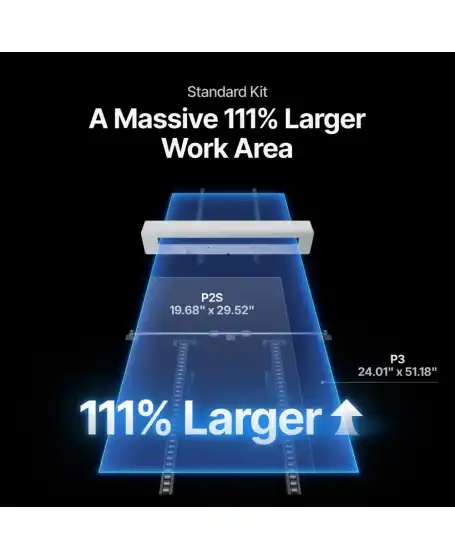

A Massive 111% Larger Work Area

Unlock a massive 111% larger processing area with the P3 feeder's standard kit. This is achieved through a combination of revolutionary 3-axis (X+Y+U) control and a wider, zero-edge-waste design, giving you more than double the creative space of the xTool P2S.

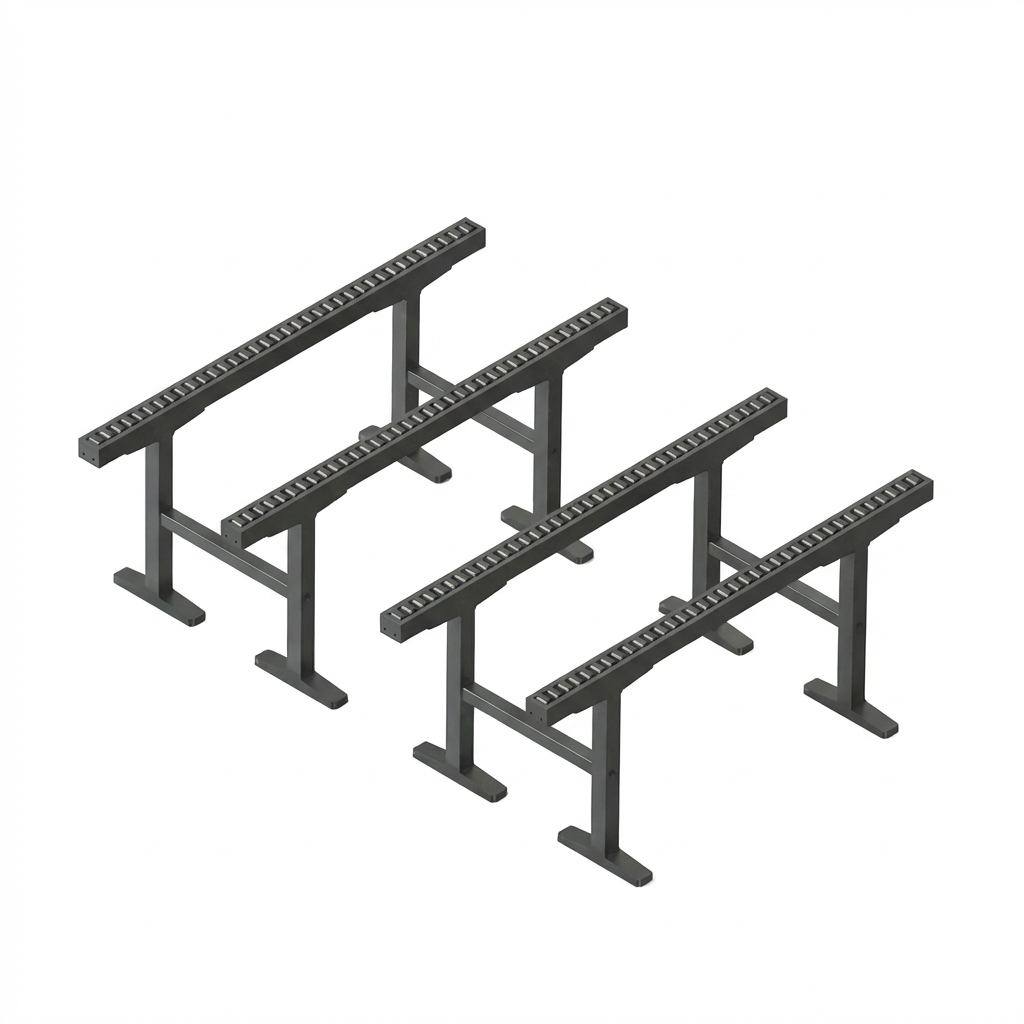

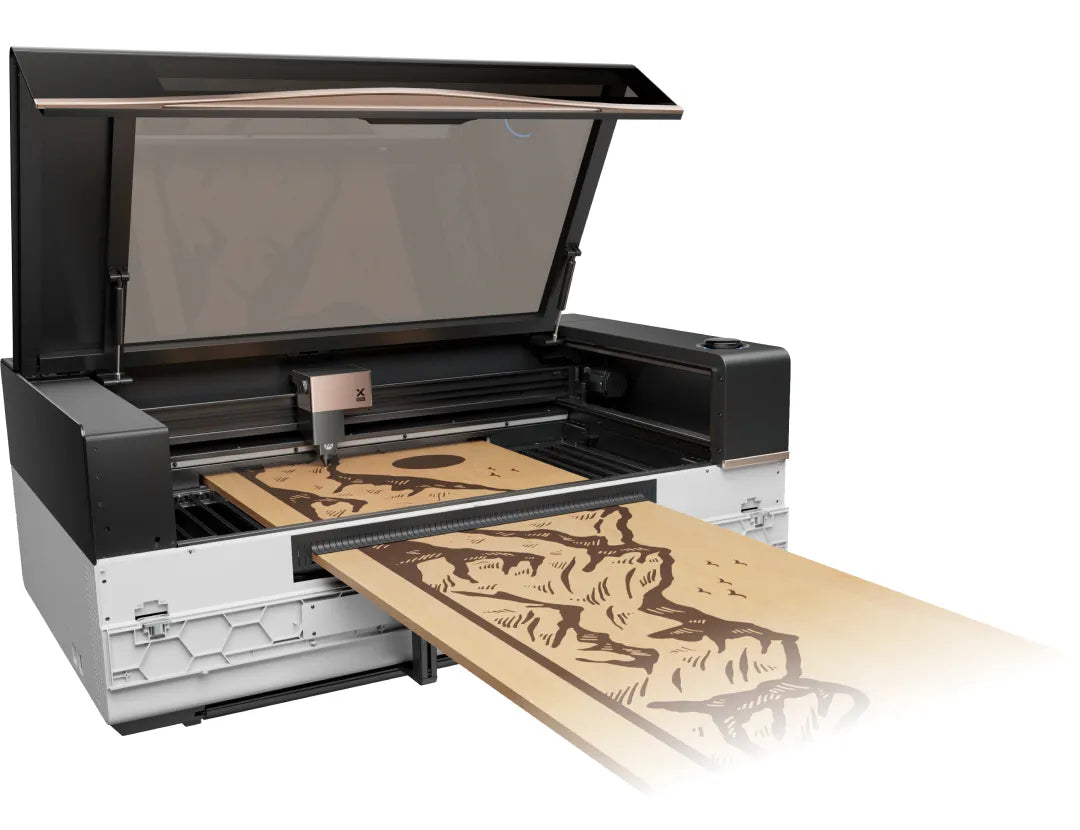

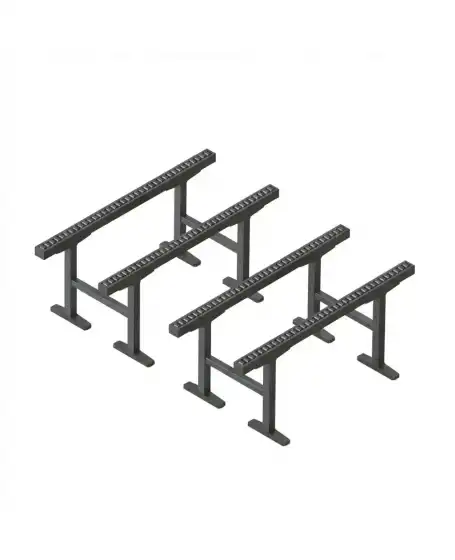

Add Rails to Go Any Length

Expand your creative possibilities by adding more rails to handle unlimited lengths. This empowers you to create large-scale projects like furniture elements or produce more items in one continuous batch.

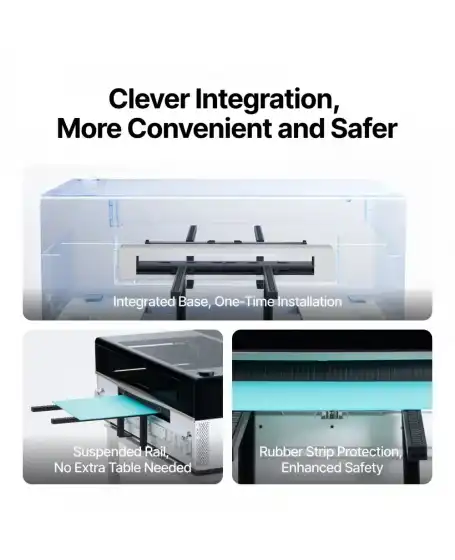

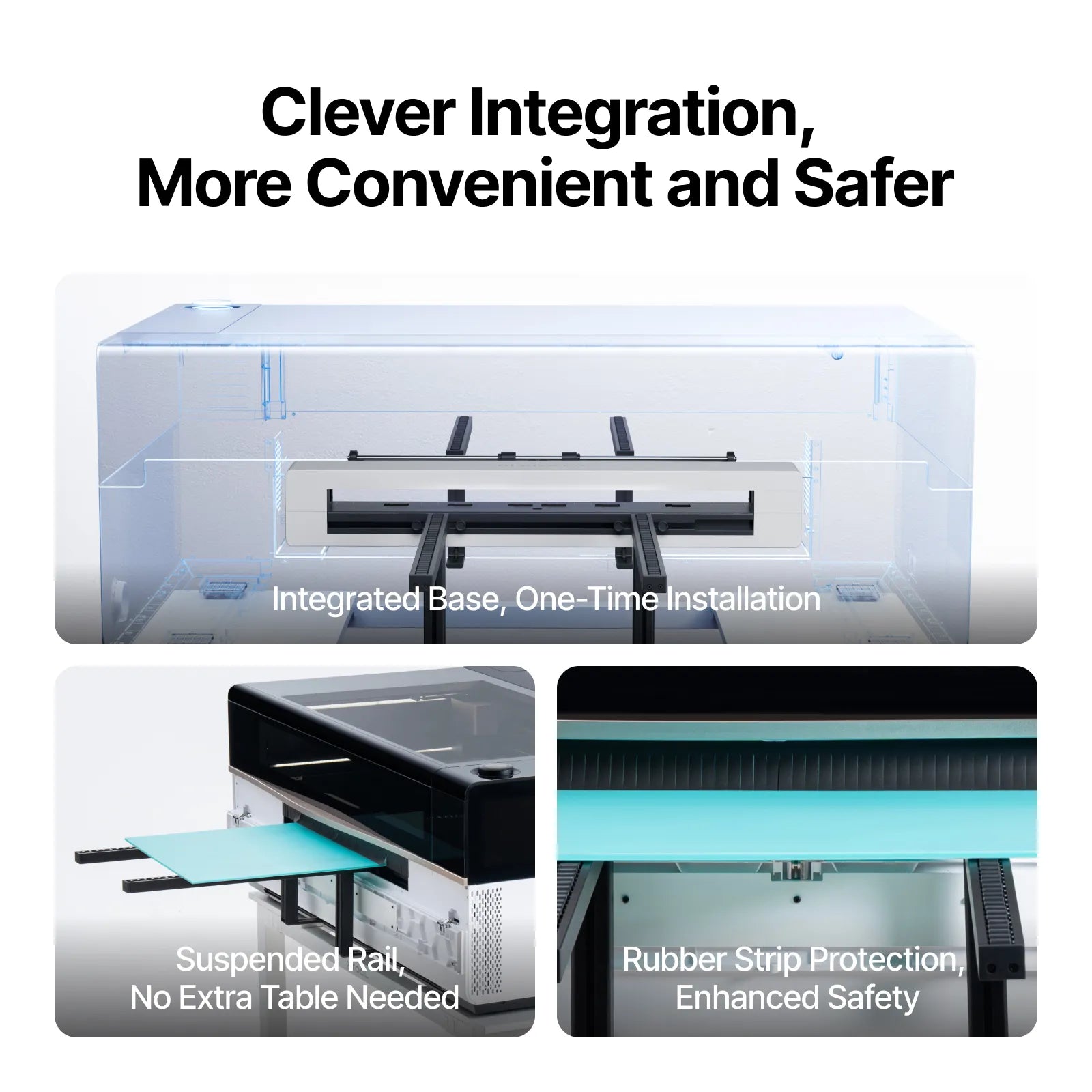

Clever Integration,

More Convenient and Safer

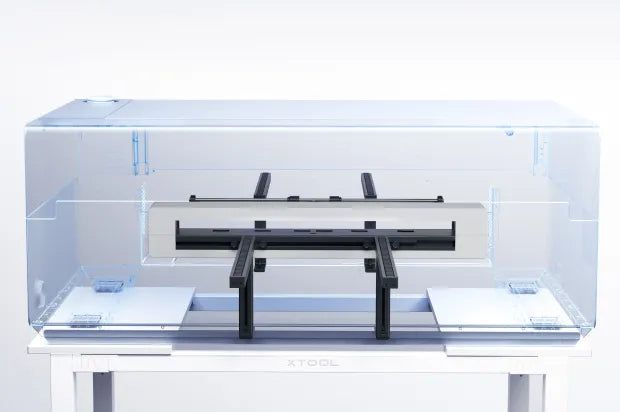

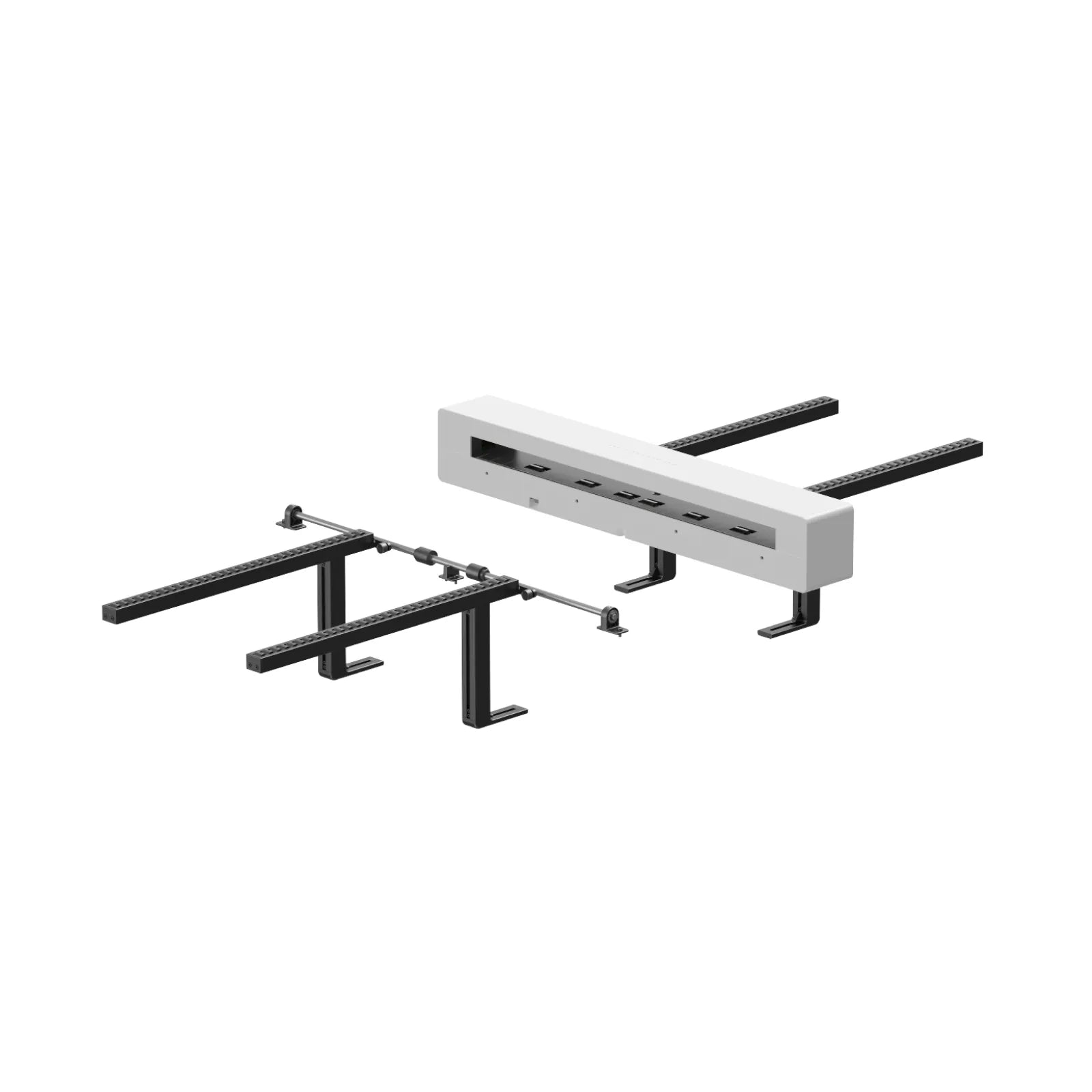

Install Conveyor Feeder Once, Always Ready

After a one-time installation on the back of your P3, it never obstructs the original work area. No more setup and teardown—always ready for use

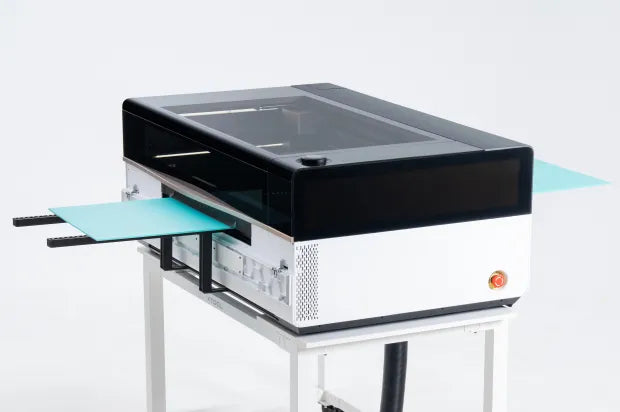

Suspended Rail, No Extra Table Needed

The suspended rail design processes 1500mm materials without extra table support, satisfying 80% of daily needs. This saves you money on tables and avoids the need for possible heavy machine lifting.

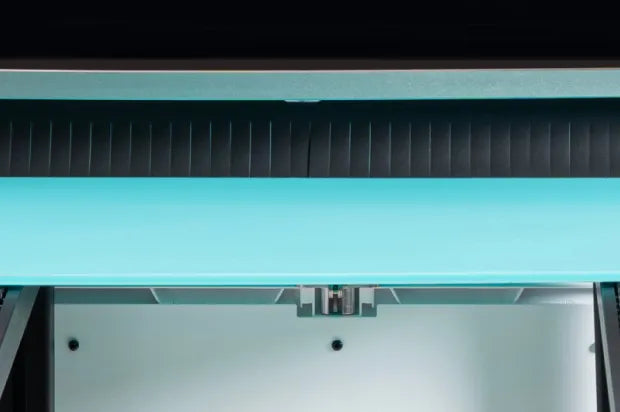

Rubber Strip Protection, Enhanced Safety

The rubber strips reduce laser and smoke leakage, creating a safer, healthier environment

Install Conveyor Feeder Once, Always Ready

After a one-time installation on the back of your P3, it never obstructs the original work area. No more setup and teardown—always ready for use

Suspended Rail, No Extra Table Needed

The suspended rail design processes 1500mm materials without extra table support, satisfying 80% of daily needs. This saves you money on tables and avoids the need for possible heavy machine lifting.

Rubber Strip Protection, Enhanced Safety

The rubber strips reduce laser and smoke leakage, creating a safer, healthier environment

Specifications

P3 Intelligent Conveyor Feeder

Buy now

P2S Automatic Conveyor Feeder

Workflow & Intelligence

Material Preview

Entire Material Preview

Partial Preview

Feed Material to the Start Position

Auto Feed

Manually Adjust the Knob

to Feed Material

Clamp Material

Auto Clamp

Manually Adjust the Knob

to Clamp Material

Auto Passthrough

√

Processing Performance

Max. Processable Width

24.01" / 610mm

19.68" / 500mm

Max. Processable Length

Unlimited

112.2" / 3000mm

Max. Processable Material Length (Standard Kit)

51.18" / 1300mm

29.52" / 750mm

Max. Speed

200mm/s (160mm/s under heavy loads)

160mm/s

Tail-end Material Waste

7.87" / 200mm

9.84" / 250mm

Capacity

Max. Placeable Material Width

24.01" / 610mm

24.56" / 624mm

Min. Placeable Material Width

4" / 101.6mm

2.55" / 65mm

Max. Placeable Wood Thickness

1.02" / 26mm

0.55" / 14mm

Max. Placeable Acrylic Thickness

0.78" / 20mm

0.55" / 14mm

Supported Materials (Hard)

Wood, Acrylic, Fiberboard

Supported Materials (Soft)

Felt, EVA, Corkwood, Leather

Max.Material Length (Standard Kit)

59.05" / 1500mm

39.37" / 1000mm

Max.Placeable Material Length (with 1 extra rail set)

86.61" / 2200mm

64.56" / 1640mm

Max.Placeable Material Length (with 2 extra rail sets)

114.17" / 2900mm

90.55" / 2300mm

Max.Placeable Material Length (with 3 extra rail sets)

141.73" / 3600mm

118.11" / 3000mm

Design & Convenience

Integrated Design

√

Suspended Rail Design

√

Rubber Strip Protection Design

√

Dimensions

29.92" x 3.94" x 4.49" / 760 x 100 x 114mm

27.05" x 7.87" x 5.31" / 687 x 200 x 135mm

Weight

8.73kg

8.045kg

Important Note:

*All product specifications and processing features displayed on this website are based on xTool's internal testing conducted under optimized conditions. Actual performance may vary depending on individual product differences, usage patterns, materials, environmental conditions, and other external factors.
*Project photos and videos are for inspiration and to demonstrate creative potential; individual outcomes remain contingent upon user technique, material choice, and environmental factors.
*Comparisons are based on publicly available information or internal testing under comparable conditions. Differences in testing methods, configurations, and environments may result in varying outcomes.
